OCP44-S+I

(1 Panel) (4-Color) (Two Sided) (No Bleed)

“-S” = 80# Matte

“+I” = With Imprinting

Size Specifications:

• Live Image Area: 8.172 inches x 3.313 inches (588.375 points x 238.5 points)
• Trim: (this is where the paper will be cut – Do not build to this size): 8.4375 inches x 3.625 inches (607.5 pts x 261 pts)

OCP44-S+I:  Is a Non-Bleed product with imprinting, build the layout using the Live Image Area size. Keep all layout elements that you don’t want to be trimmed or cropped, inside of the Live Image Area.

IMPORTANT NOTE TO DESIGNERS: Valpak requires designating a 3 inch x .6 inch area of white space for the imprinting code. Click the link below for more details of the imprinting area.

CLICK HERE FOR IMPRINTING AREA DETAILS

We have InDesign Templates available!

Click HERE to download the 1-Panel InDesign templates (Horizontal and Vertical Layouts).

Examples of properly built OCP44-S+I with imprinting:

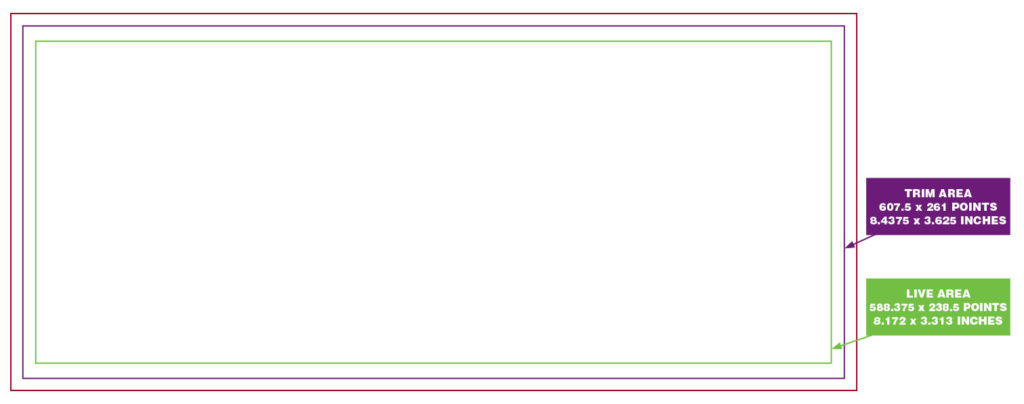

Horizontal Layout visual showing where the Trim and Live Area are located:

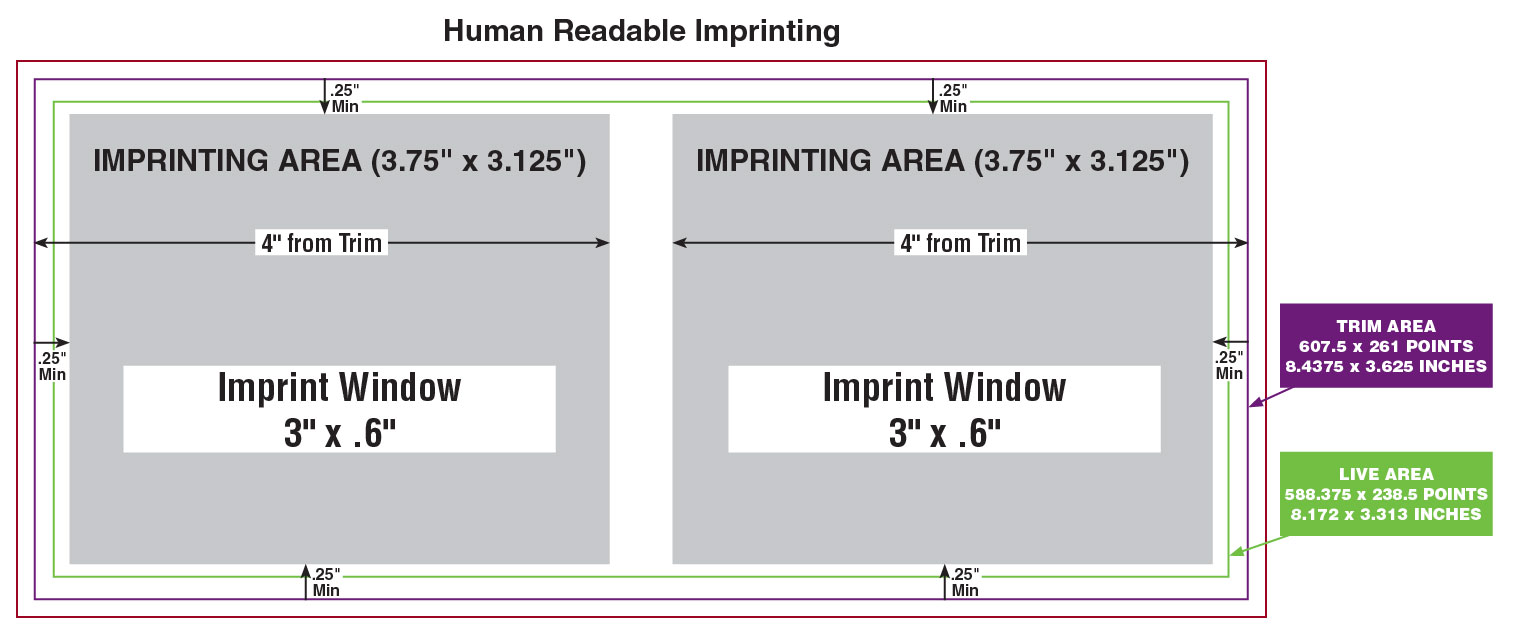

Horizontal Layout visual showing where the Imprinting Area can be located:

The Imprinting Area is the available space for the Imprint Window. It must not be closer than .25″ from the Trim Area, and no more than 4″ from the Trim Area.

The Imprint Window is where the code will be printed, and can be on the left or right side of the layout anywhere inside of the Imprinting Area.

**IMPORTANT IMPRINTING NOTE: The Imprint Window must be clear of all backgrounds, images, artwork or text.

For more information on Imprinting, please contact your Valpak representative.

How to build this product:

!!! INCORRECT:

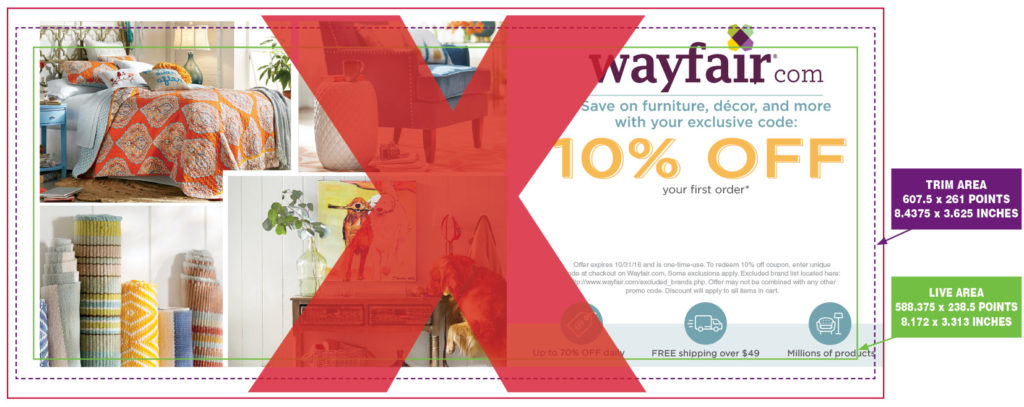

Horizontal Layout visual showing an incorrectly built OCP44-S+I product. Notice that some background images, text, and the business logo are outside the Live Image Area. This will result in these elements being trimmed when this is printed.

CORRECT:

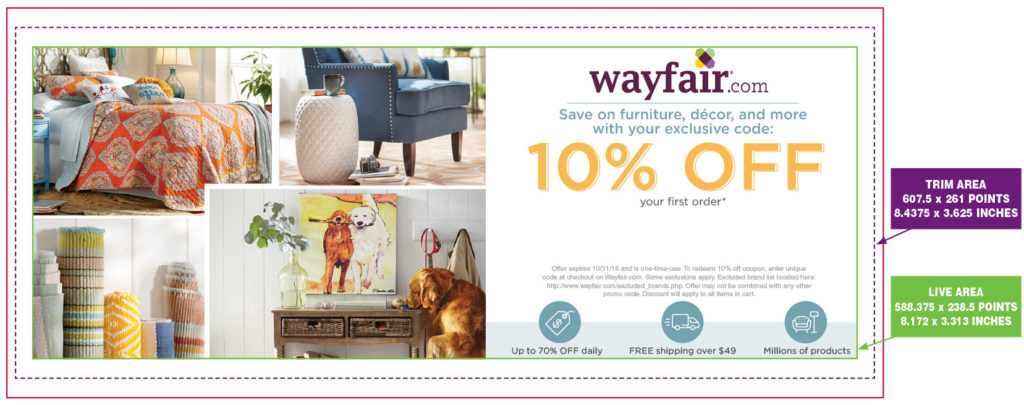

Horizontal Layout visual showing a correctly built OCP44-S+I product. All of the layout elements are completely contained within the Live Image Area, and the Imprint Window is clear of all backgrounds, images, artwork or text.
