CMB40

(1 Panel) (4-Color) (One Sided) (Coin Magnet)

(With Bleed)

Size Specifications:

• Live Image Area: 7.9167 inches x 3 inches (570 points x 216 points)
• Trim: (this is where the paper will be cut – Do not build to this size): 8.25 inches x 3.5 inches (594 points x 252 points)
• Bleed: 8.42 inches x 3.75 inches (606 points x 270 points)

CMB40:  Is a Bleed** product, background images and art elements can extend to the Bleed size. Keep all layout elements that you don’t want to be trimmed or cropped, inside of the Live Image Area.

** IMPORTANT Note about Bleed Products: Valpak’s templates are intentionally built without bleed settings applied. If using a Valpak template and your product calls for a bleed, do not enter any bleed settings. Instead, simply build your layout according to the bleed margins designated on the template.

Click HERE to download the 1-Panel InDesign templates (Horizontal and Vertical Layouts).

Examples of properly built CMB40 products:

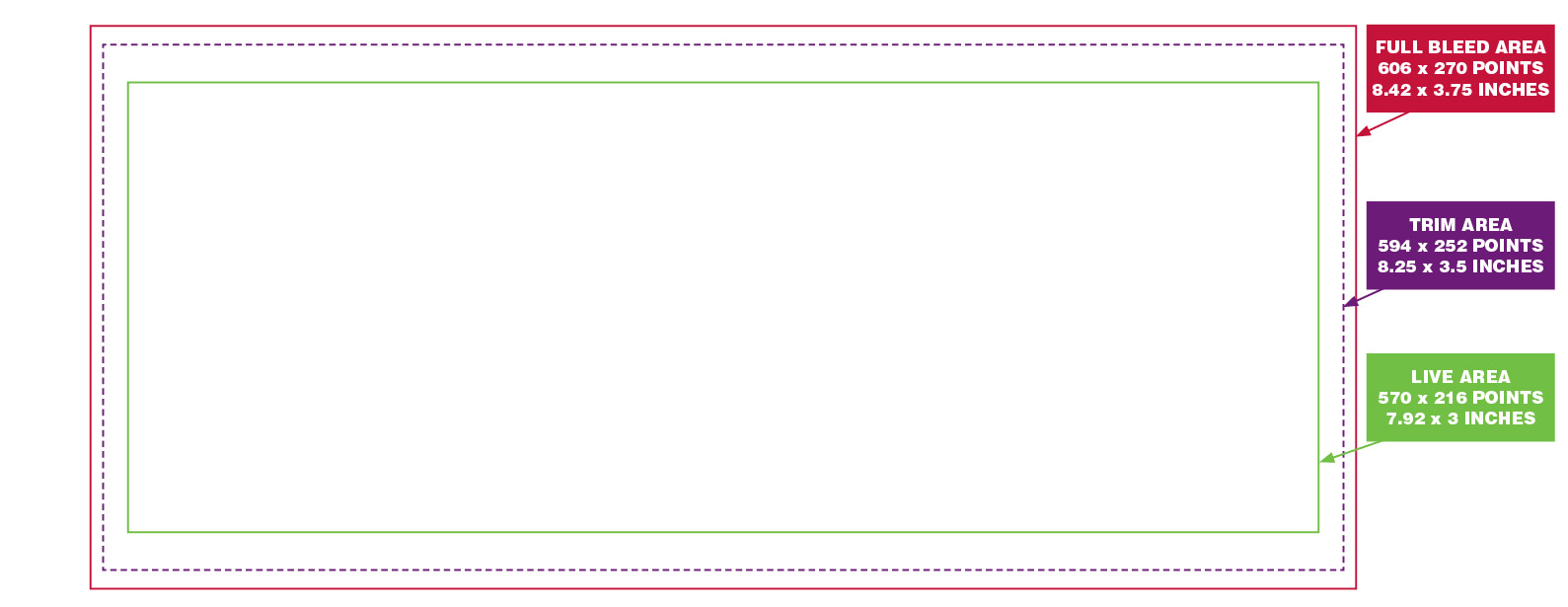

Horizontal Layout visual showing where the Bleed, Trim and Live Area are located.

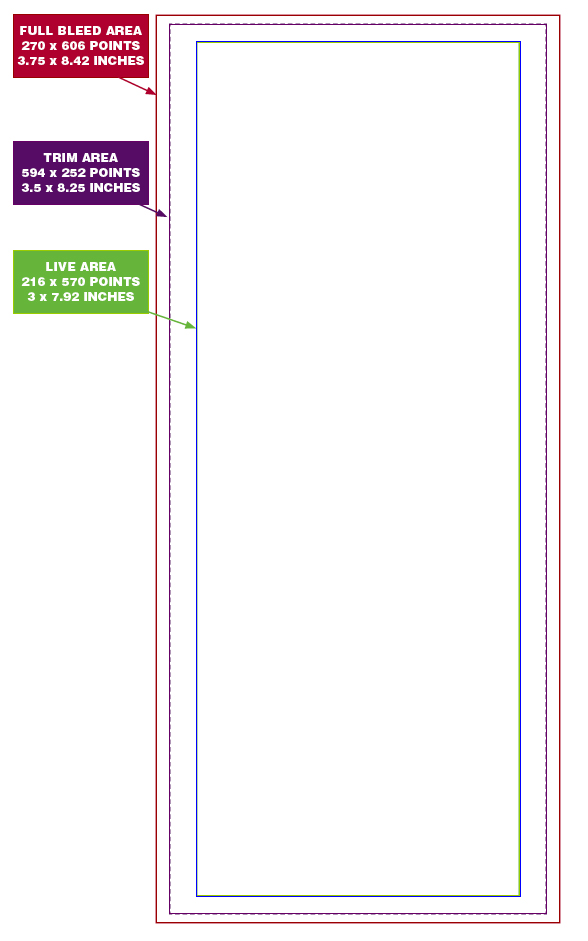

Vertical Layout visual showing where the Bleed, Trim and Live Area are located.

How to build this product:

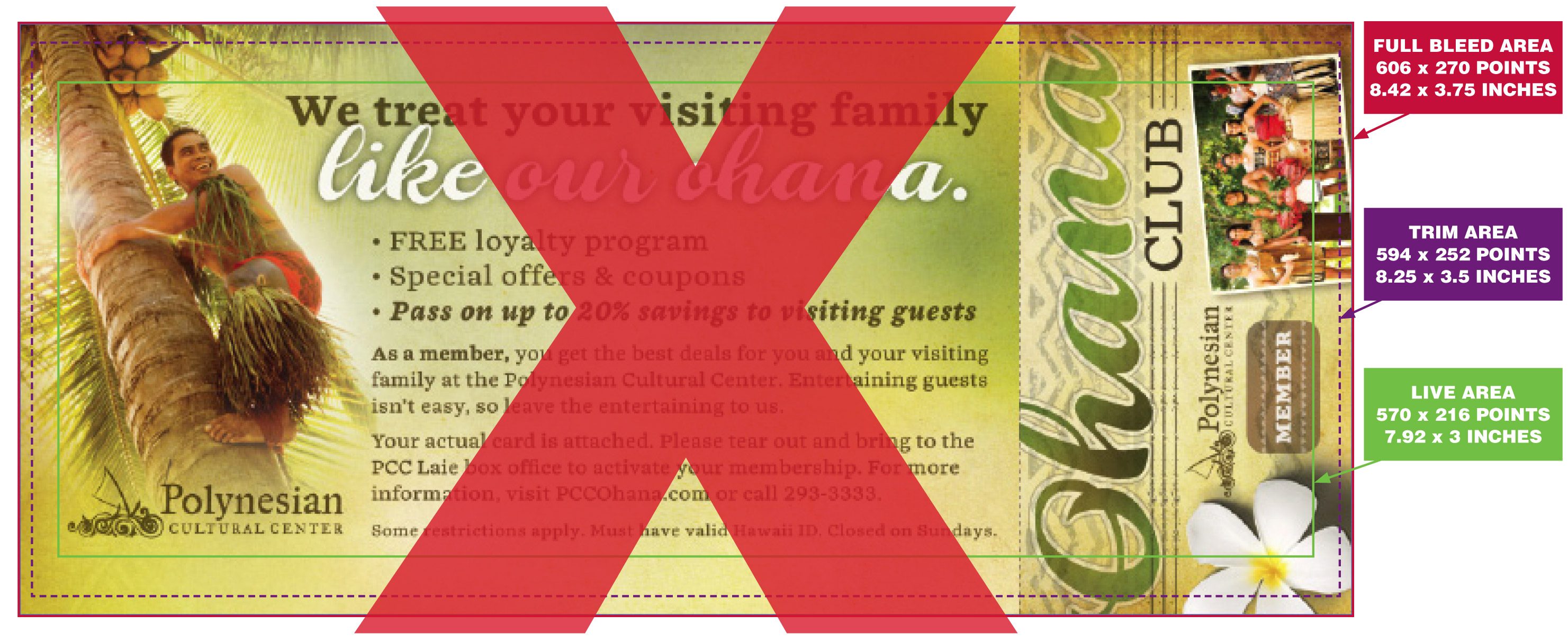

!!! INCORRECT:

Horizontal Layout visual showing an incorrectly built CMB40 product. Notice that there’s not enough of the multicolor image and background extending to the Bleed size. This will result in the background being trimmed short, resulting in white paper showing around the layout edges.

CORRECT:

Vertical Layout visual showing a correctly built CMB40 product. The background is fully extending to the bleed size, and all the important layout elements are completely within the Live Image Area.
