C2P40

(1 Panel) (4-Color) (One Sided) (No Bleed)

Size Specifications:

Live Image Area: 7.9167 inches x 3 inches (570 points x 216 points)
Trim: (this is where the paper will be cut – Do not build to this size): 8.25 inches x 3.375 inches (594 points x 243 points)

C2P40: Is a Non-Bleed product, build the layout using the Live Image Area size. Keep all layout elements that you don’t want to be trimmed or cropped, inside of the Live Image Area.

This product can have Multiple Impressions (the ability to order multiple 1-panel formats in the same job/NTA), at the same wholesale cost as a 2-panel flyer.

C2P40 – 2 impressions per job/NTA

Click HERE to download the InDesign templates (Horizontal and Vertical Layouts).

Examples of properly built C2P40 products:

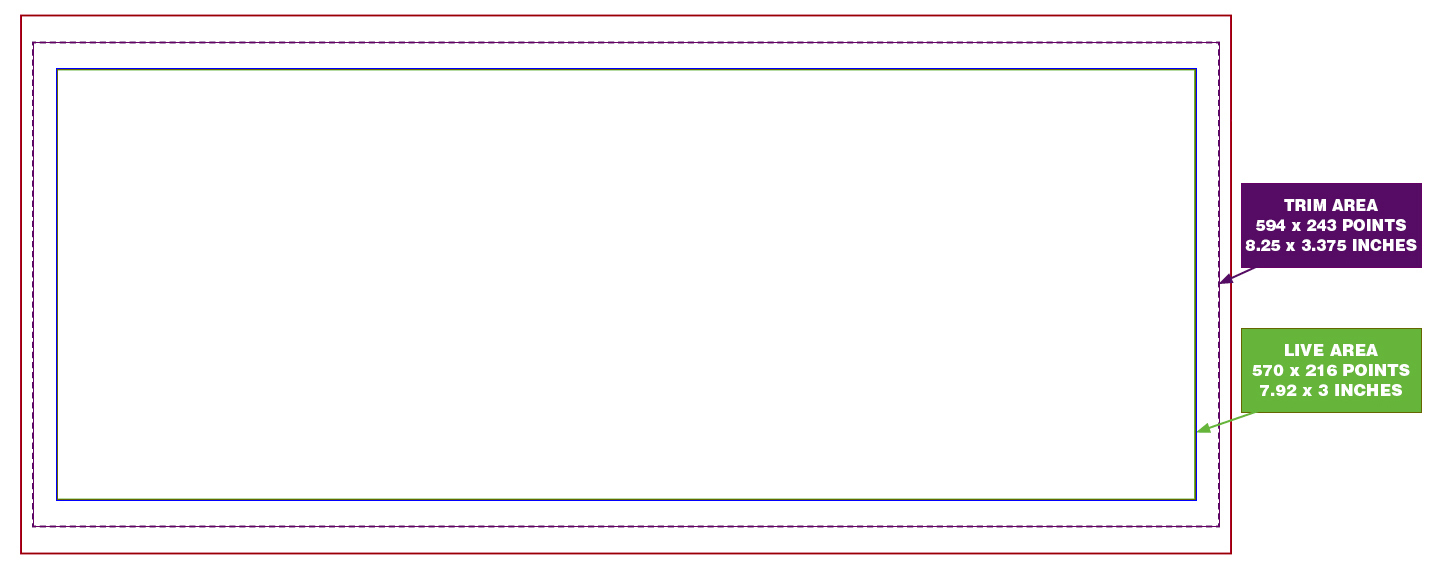

Horizontal Layout visual showing where the Trim and Live Area are located.

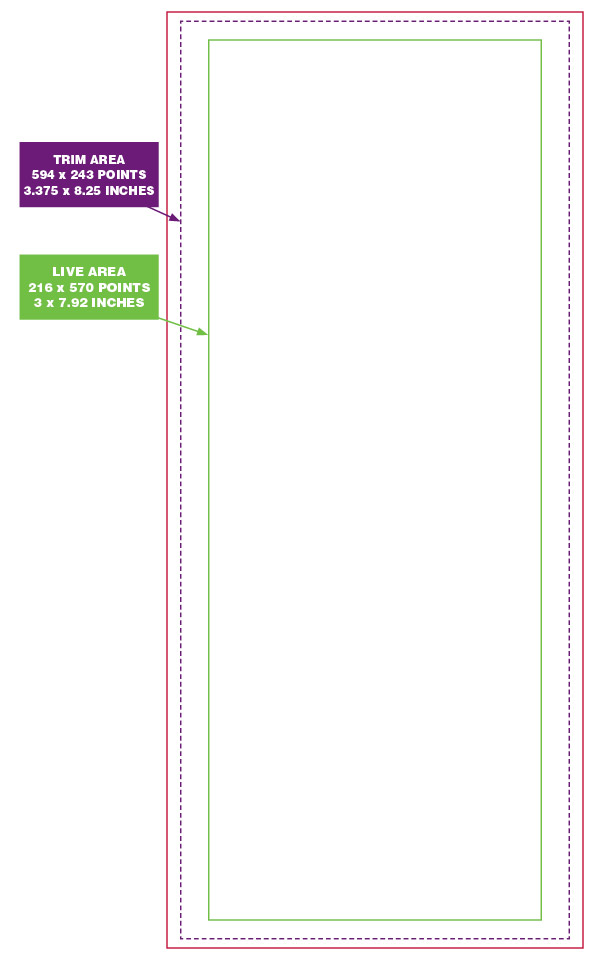

Vertical Layout visual showing where the Trim and Live Area are located.

How to build this product:

!!! INCORRECT:

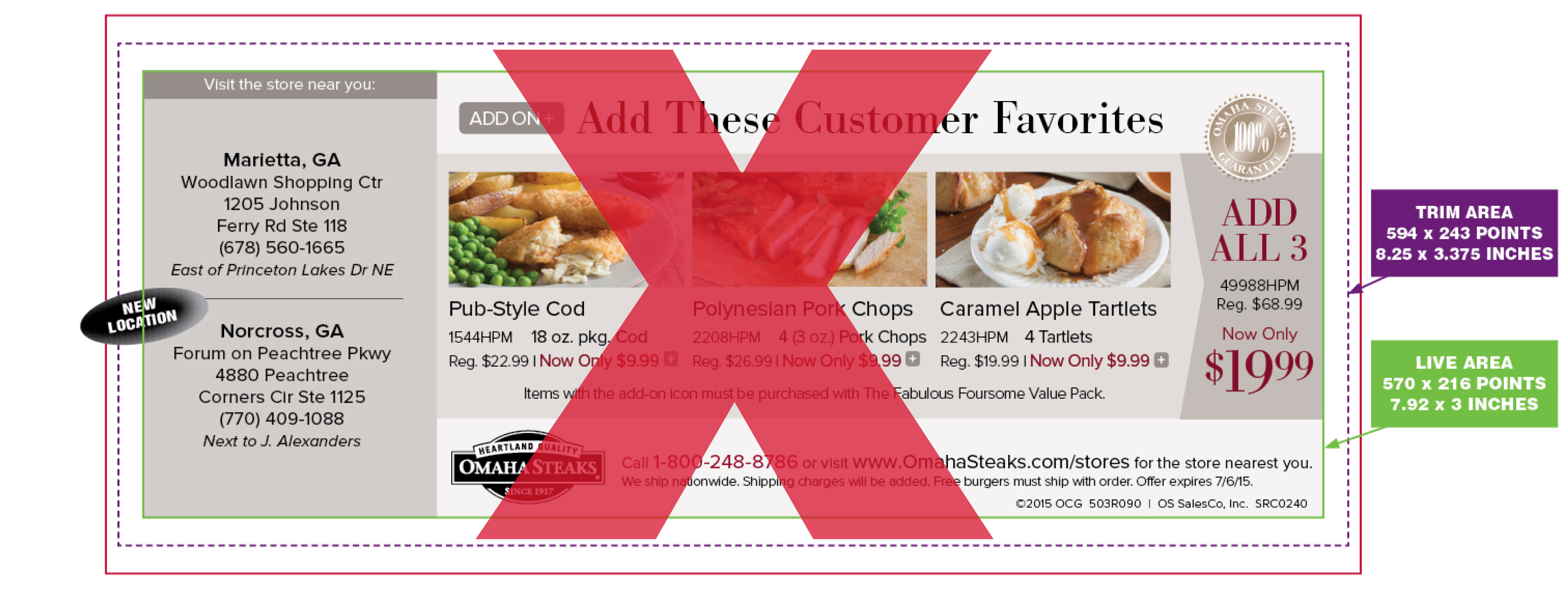

Horizontal Layout visual showing an incorrectly built C2P40 product. Notice that the “New Location” button is outside the Live Image Area. This will result in the button being trimmed when this is printed.

CORRECT:

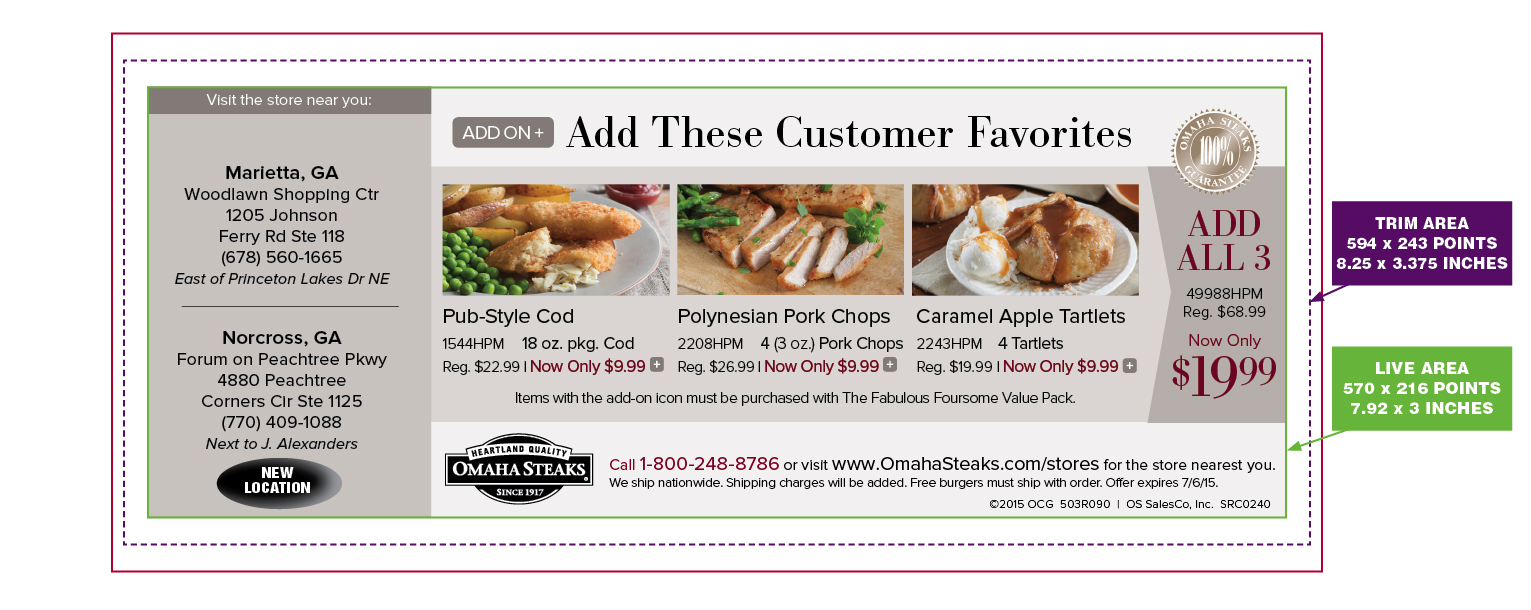

Horizontal Layout visual showing a correctly built C2P40 product. All of the layout elements are completely contained within the Live Image Area.
