6FP44-P

(6 Panel) (4-Color) (Two Sided) (No Bleed)

“-P” = 50# Glossy Paper

Size Specifications:

• Live Image Area: 16  inches x 10 inches (1152 points x 720 points)
• Trim: (this is where the paper will be cut – Do not build to this size): 16.75 inches x 10.5 inches (1206 points x 756 points)

6FP44-P:  Is a Non-Bleed product, build the layout using the Live Image Area size. Keep all layout elements that you don’t want to be trimmed or cropped, inside of the Live Image Area.

Click HERE to download the 6-Panel InDesign templates (Horizontal and Vertical Layouts).

Examples of properly built 6FP44 products:

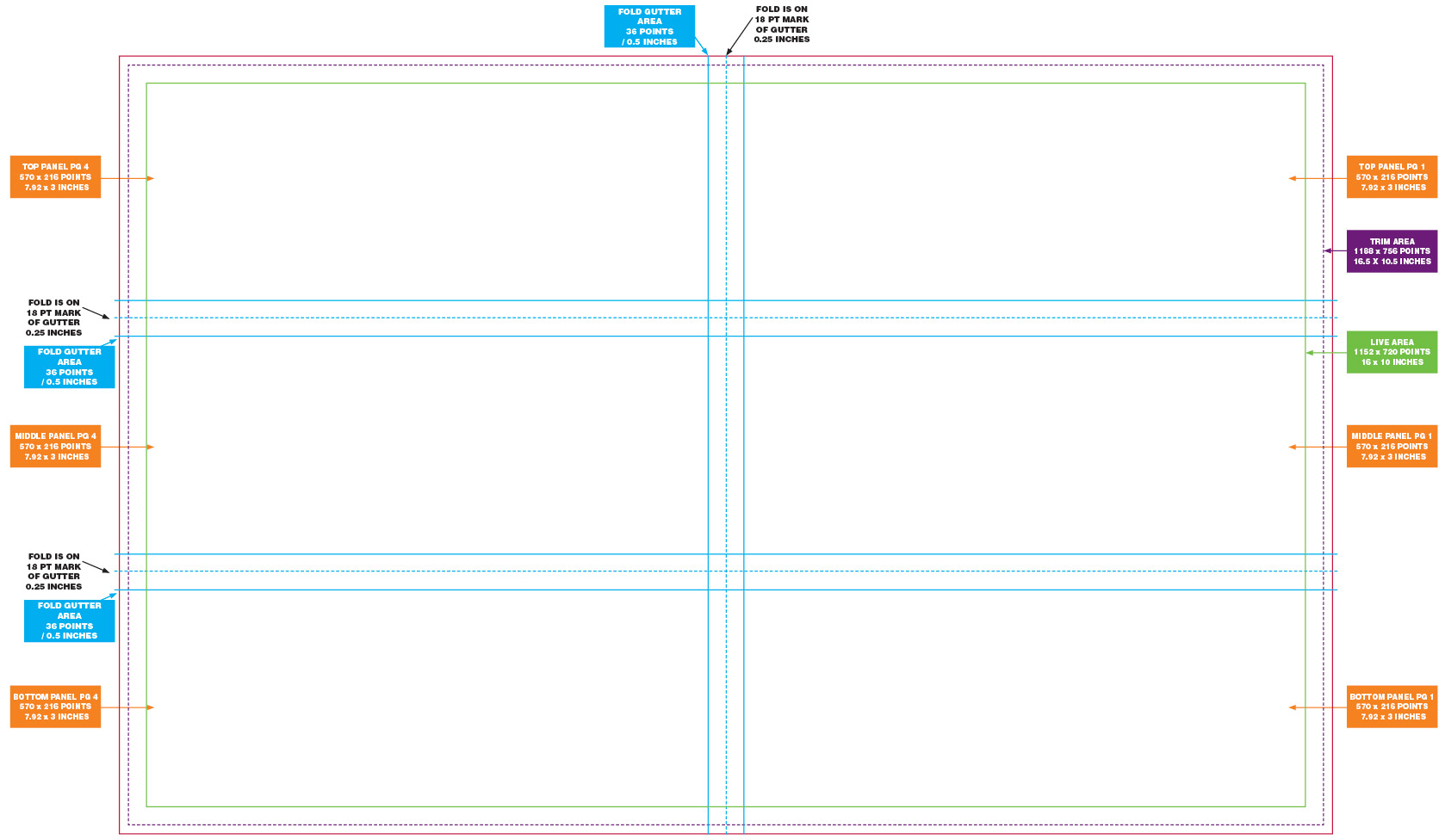

Horizontal Layout visual showing the Trim, Live Area, and indicating where the Fold and Gutters are located.

How to build this product:

!!! INCORRECT:

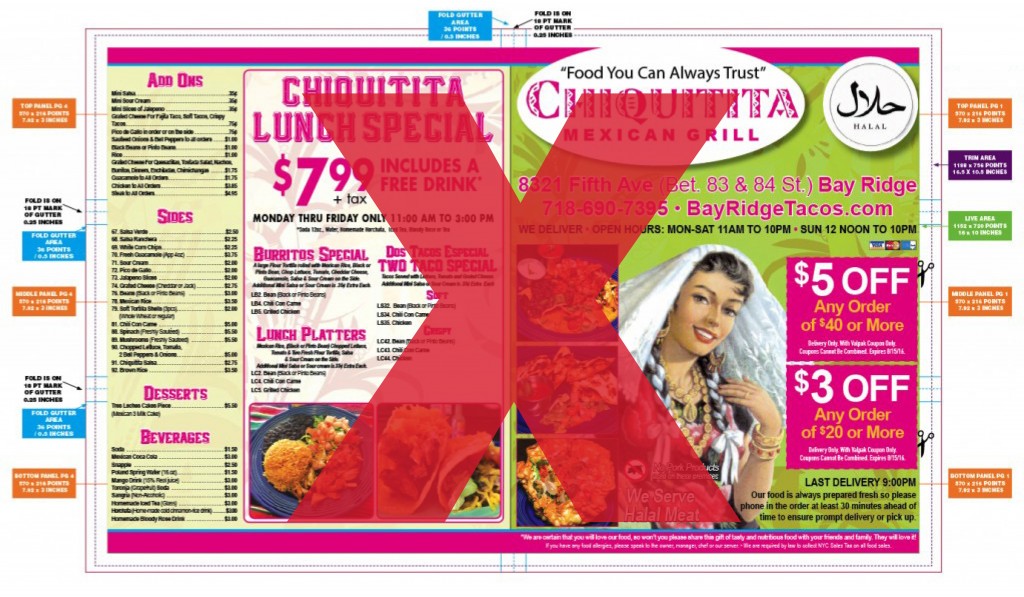

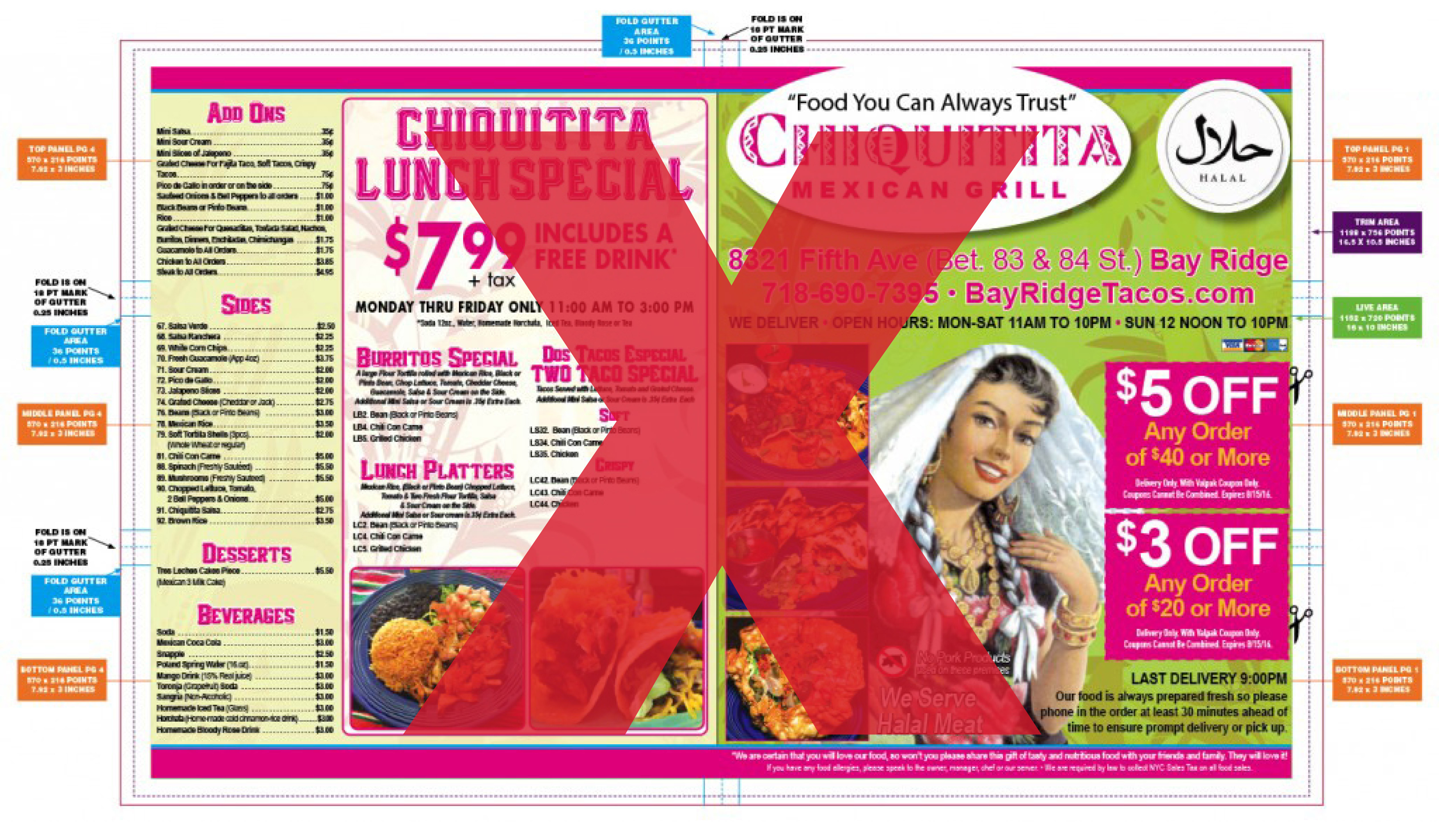

Horizontal Layout visual showing an incorrectly built 6FP44-P product. Notice that the “Scissors” art to clip the offer is outside the Live Image Area. This will result in the scissors being trimmed when this is printed.

CORRECT:

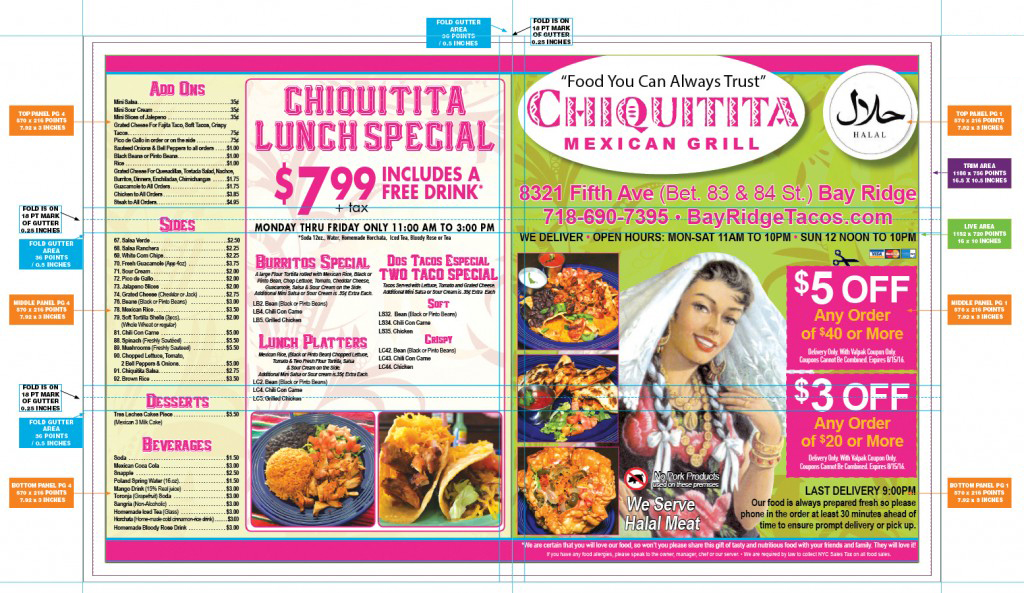

Horizontal Layout visual showing a correctly built 6FP44-P product. All of the layout elements are completely contained within the Live Image Area.
