2FP40

(2 Panel) (4-Color) (One Sided) (No Bleed)

Size Specifications:

Live Image Area: 7.9167 inches x 6.25 inches (570 points x 450 points)
Trim: (this is where the paper will be cut – Do not build to this size): 8.25 inches x 6.75 inches (594 points x 486 points)

2FP40: Is a Non-Bleed product, build the layout using the Live Image Area size.

Click HERE to download the 2-Panel InDesign templates (Horizontal and Vertical Layouts).

Examples of properly built 2FP40 products:

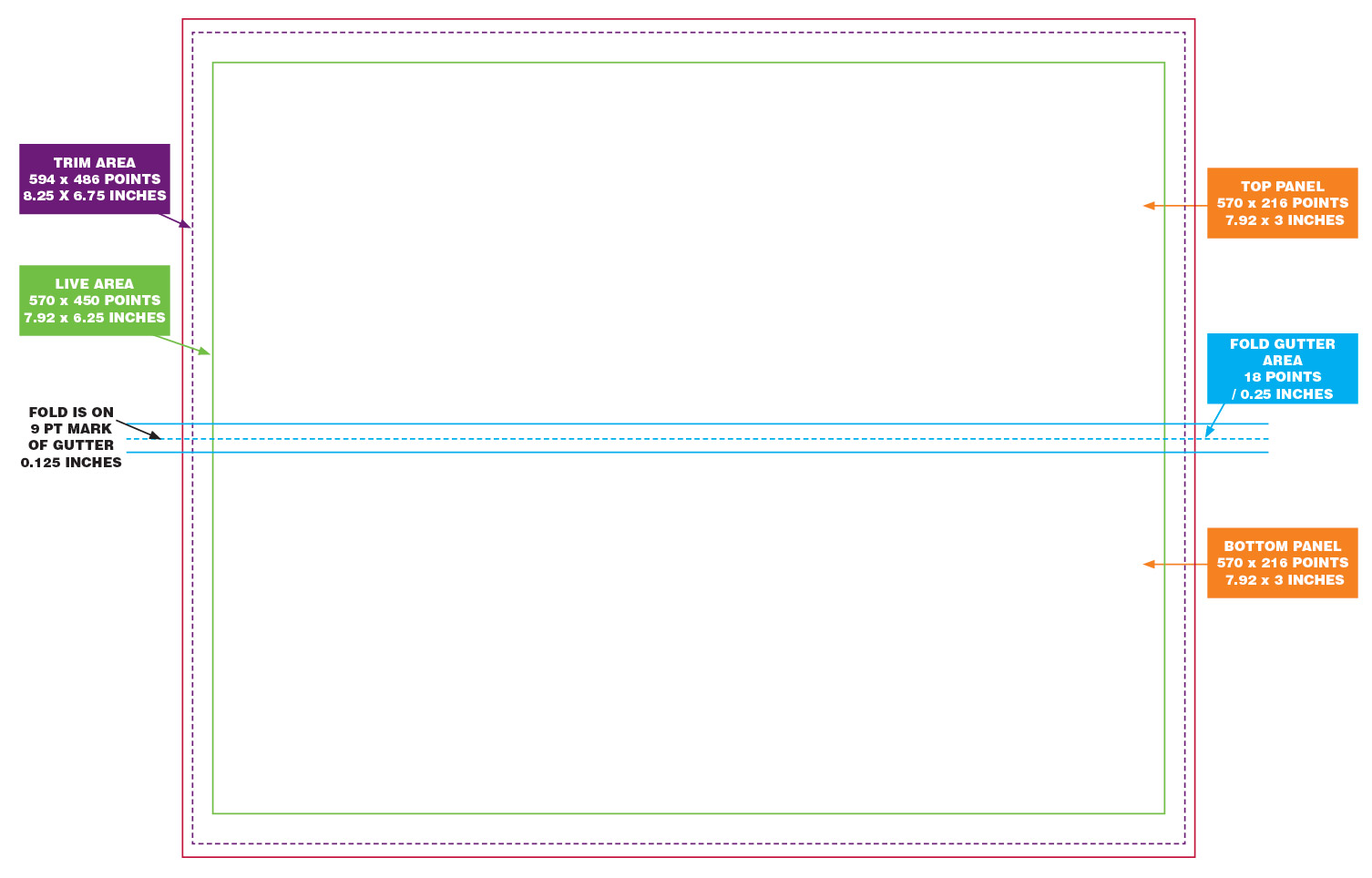

Horizontal Layout visual showing the Trim, Live Area, and indicating where the Fold and Gutters are located.

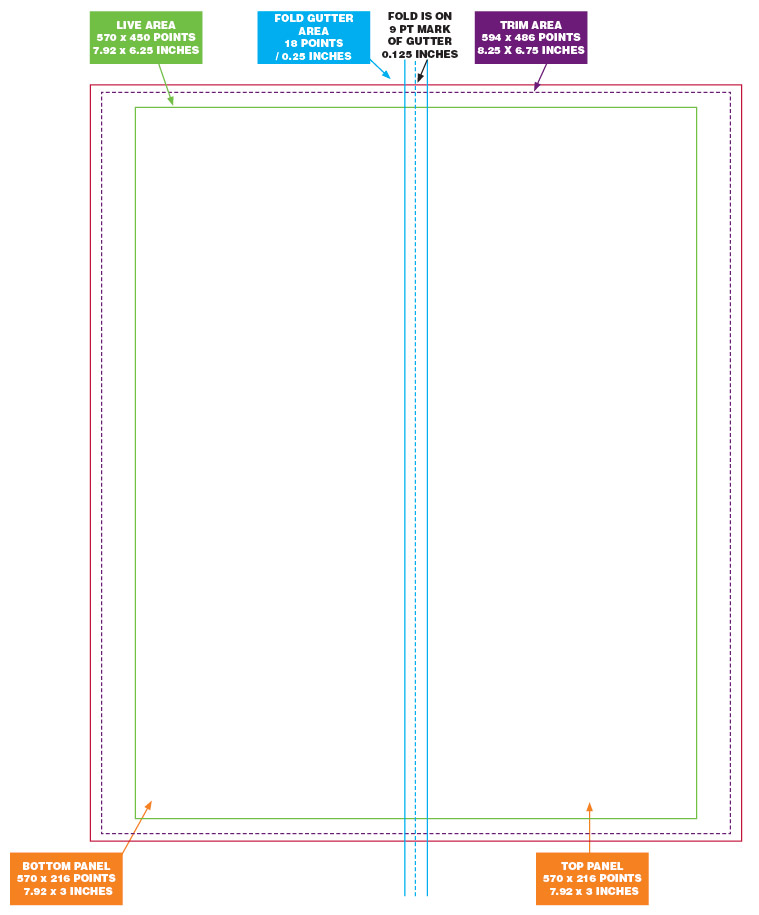

Vertical Layout visual showing the Trim, Live Area, and indicating where the Fold and Gutters are located.

How to build this product:

!!! INCORRECT:

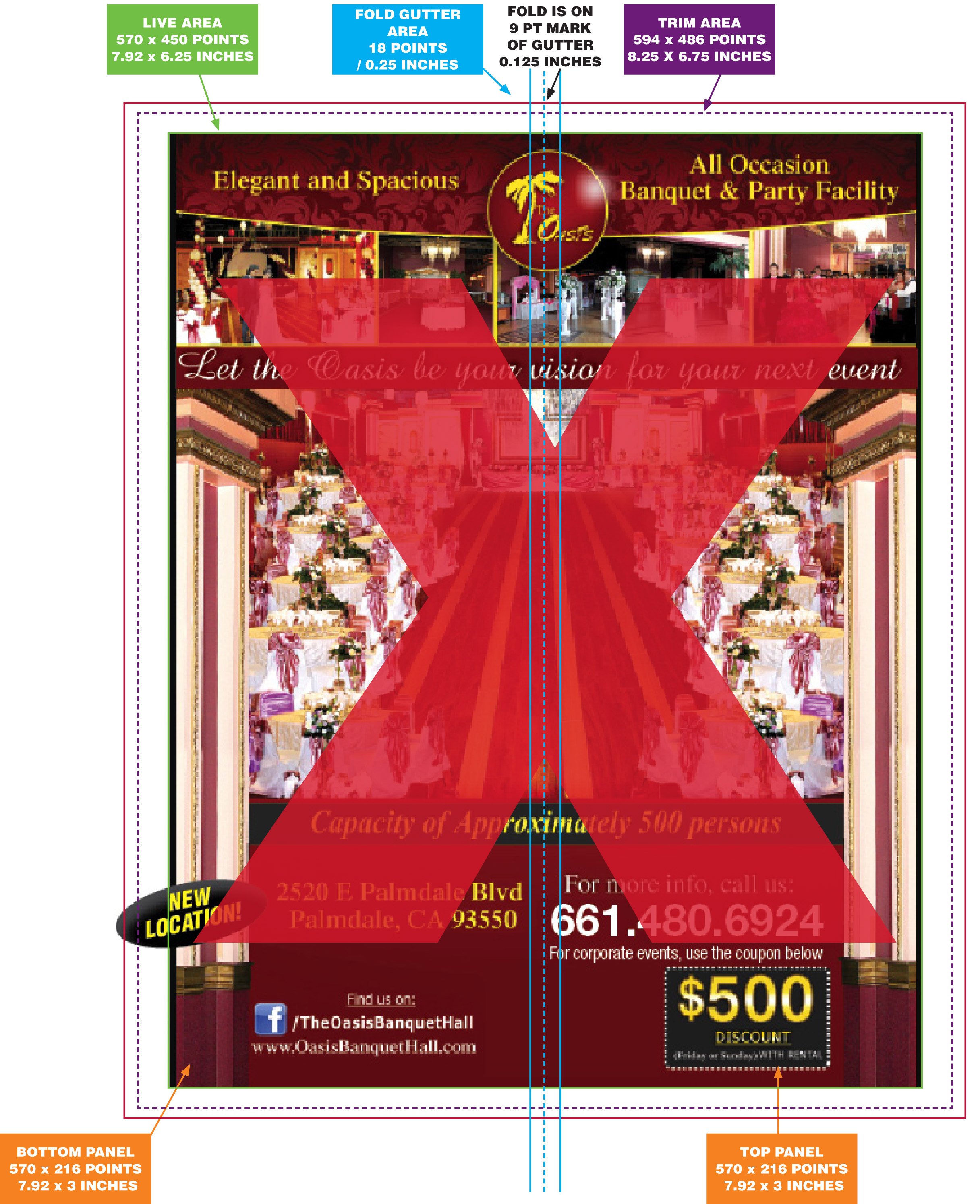

Vertical Layout visual showing an incorrectly built 2FP40 product. Notice that the “New Location” button is outside the Live Image Area. This will result in the button being trimmed when this is printed.

CORRECT:

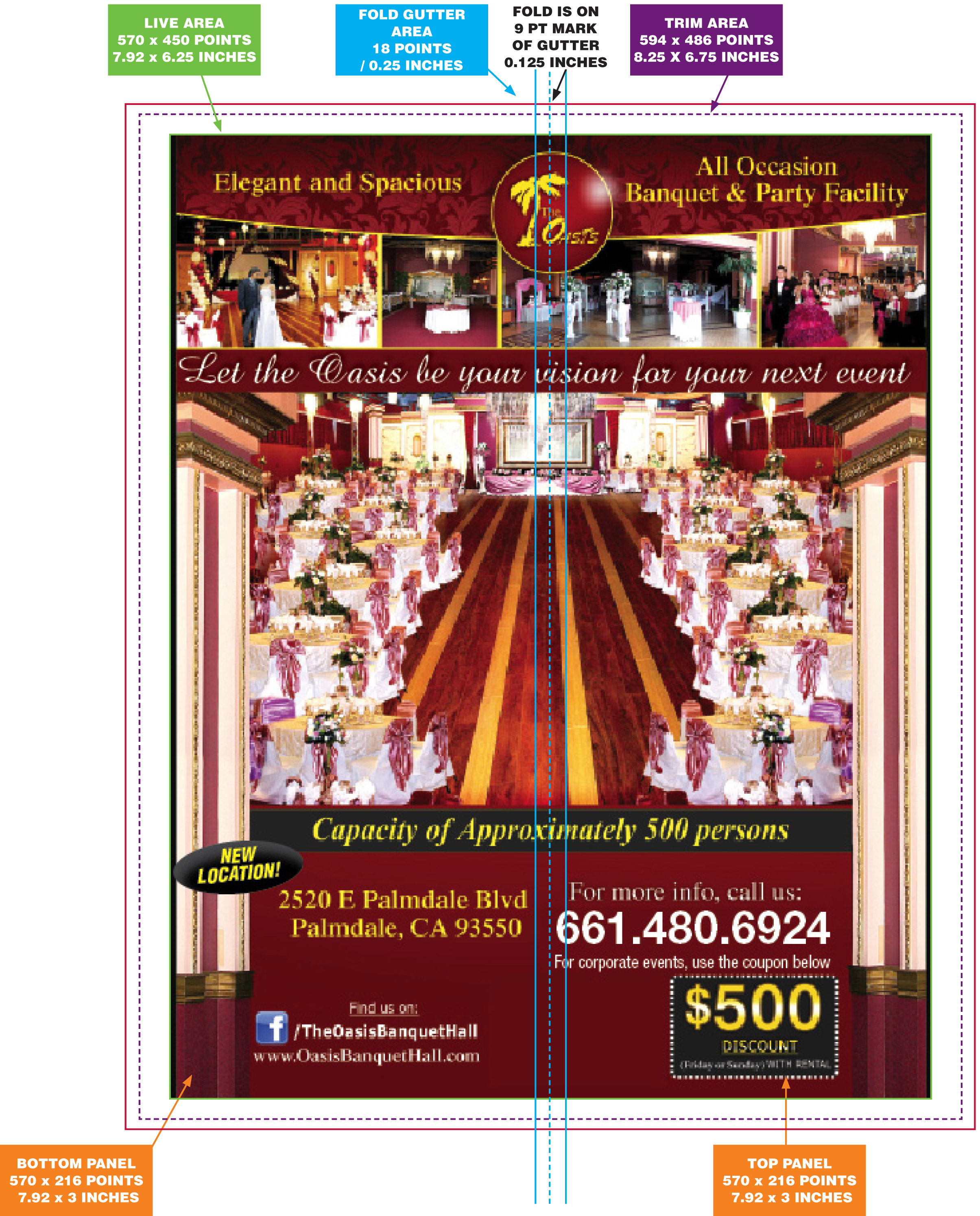

Vertical Layout visual showing a correctly built 2FP40 product. All of the layout elements are completely contained within the Live Image Area.
